1.When choosing a product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2.When placing an order, please note that explosion-proof products do not include digital display heads.
3. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
4. Do not press the sensor diaphragm with your hands or sharp objects to prevent damage to the core due to diaphragm deformation or perforation.
5.The rated operating temperature range of fluororubber O-rings is -20℃ to 250℃. When the working temperature of the product is below -20℃, EPDM O-rings should be selected.
7. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order
. | Order Guide |
| BP93420XX | Pressure Transmitter |
| | Code | Outline Construction |
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter | | |
| IC | High-temperature Pressure Transmitter | | |

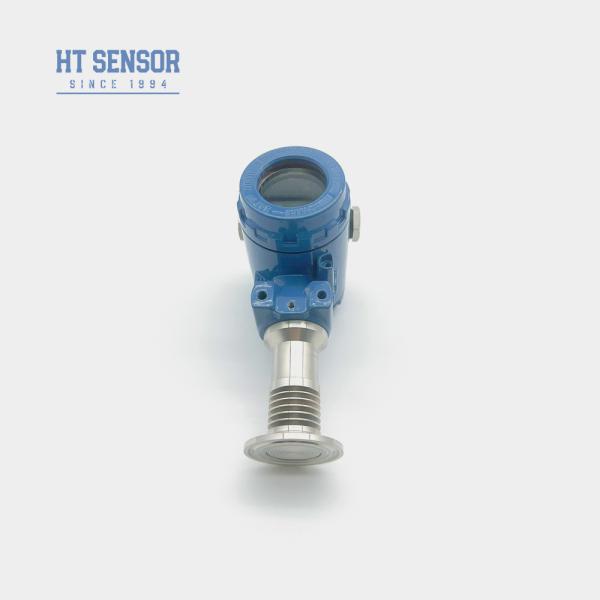

| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | | |
| | Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range |
| | Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| | Code | Output Signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| | Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Other |
| | Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| | Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
