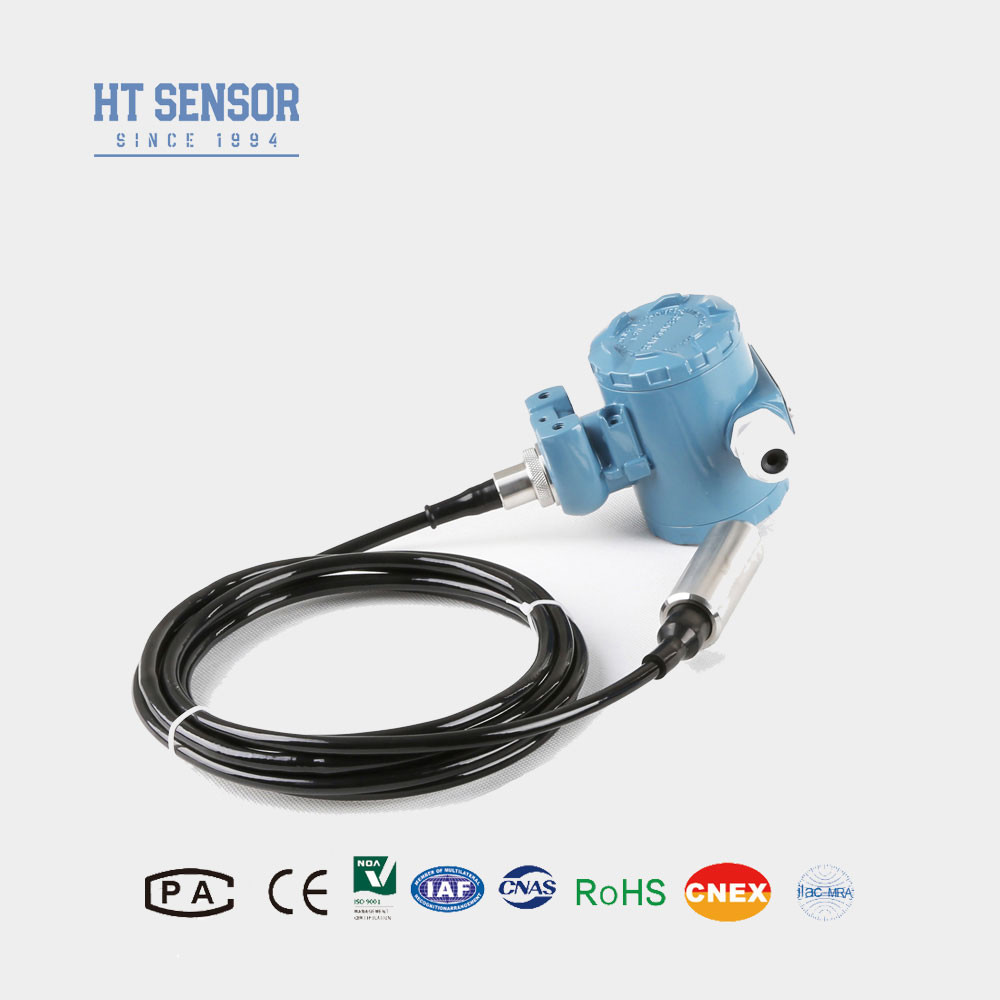

BH93420 IB Sumersible liquid level transmitter
Introduction of liquid level transmitter sensor:
Boasting a stainless steel-encased sensing element and IP68 waterproof rating, the BH93420-I water level transmitter is an ideal choice for demanding liquid level monitoring applications. Powered by an HT series pressure and oil-filled sensor, this transmitter offers a convenient junction box interface for straightforward field installation and mounting. Its versatility makes it suitable for a diverse range of industries, including petrochemical, metallurgy, power, pharmaceutical, water treatment, and environmental sectors.
Product Features of liquid level transmitter sensor:
- PE or PU, PTFE cable options for enhanced durability and chemical resistance.
- Immersion-type probe design enables straightforward installation.

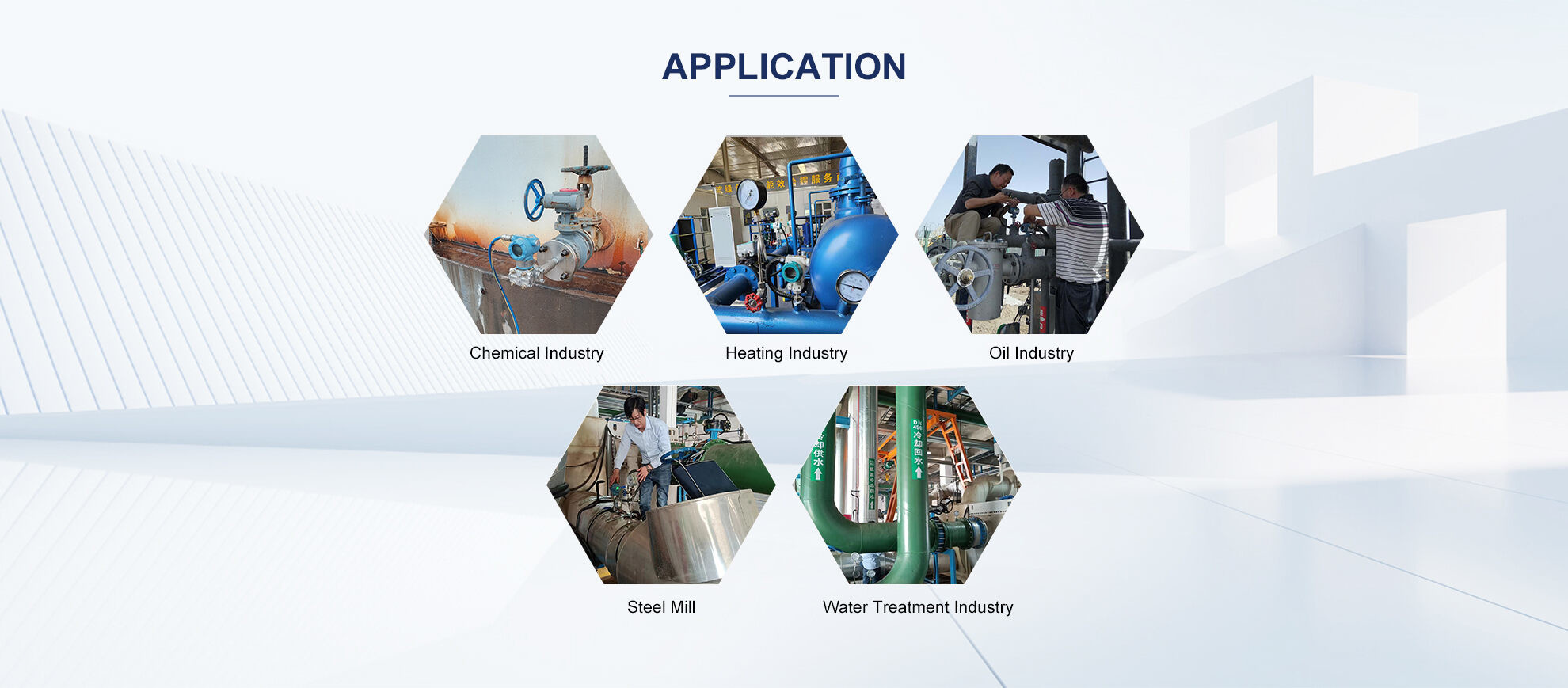

Applications of liquid level transmitter sensor:.
1. Compatible with 316LSS,noncorrosive liquids.
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc.
3. Measuring fuel levels in diesel and fuel tanks.

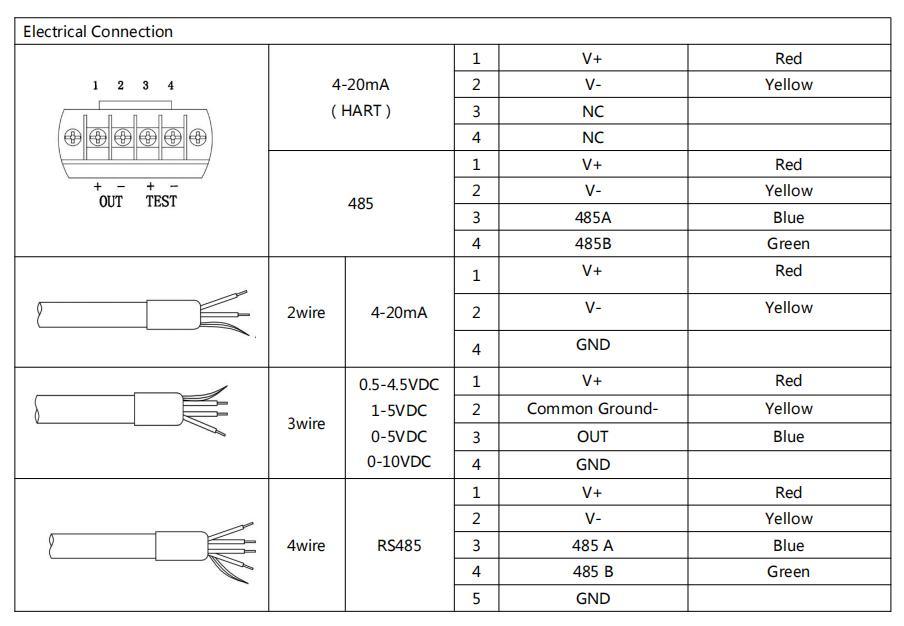

| Performance Parameters of liquid level transmitter sensor |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
| RS485 Communication Protocol |
- Select product components that are compatible with the characteristics of the measured medium.
- Specify the density of the measured medium to enable proper configuration.
- Notify the company about any strong electromagnetic or radio frequency interference conditions, and include this information in the order.

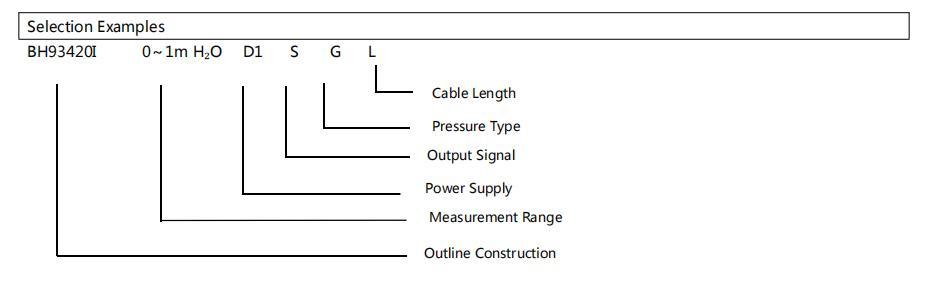

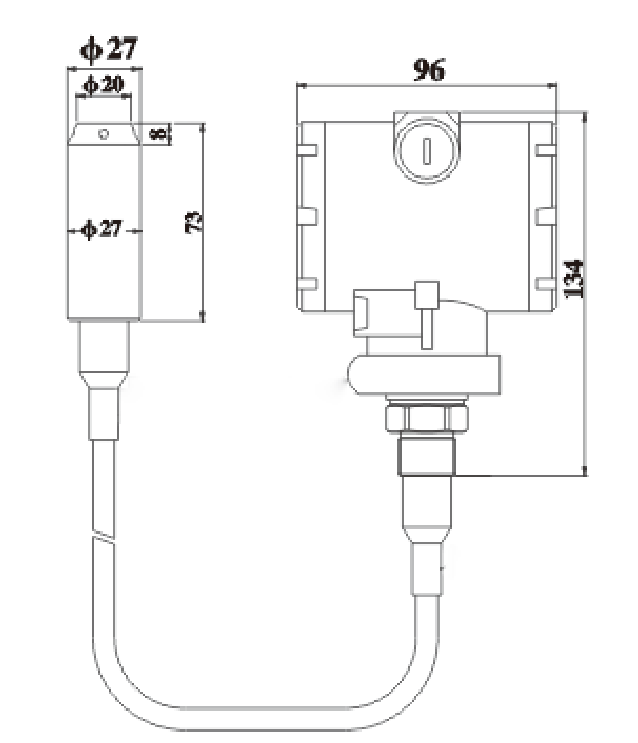

| Order Guide |
| BH93420 | Code | Outline Construction |
| | I | Pressure Transmitter |
| | Measurement Range | 0~10m…400m |
| | Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| | Code | Output Signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | S8 | RS485 |
| | Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| | Code | Material |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| | Code | Cable Material |
| C1 | PE |
| C2 | PU |
