BP170 Pressure Transmitter
Introduction of Industrial pressure sensor transmitter :
The BP170 industrial pressure sensor transmitter utilizes the HT series silicon-insulated oil-filled sensor core to measure signals. Our custom high-precision PCB, along with special Hersman (DIN) connectors, converts the sensor signal into the desired standard output signal as per customer requirements. This versatile transmitter finds extensive application across various industries.
Product Features of Industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. Compact and lightweight design
3. High precision, long-term stability
Applications of Industrial pressure sensor transmitter:
1. Measurement of pressure in both gases and liquids that are non-corrosive
2. petroleum, chemical, metallurgy, power generation, and hydrology
3. Used in industrial processes control
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of Industrial pressure sensor transmitter |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
| Selection Examples of pressure transmitter sensor |

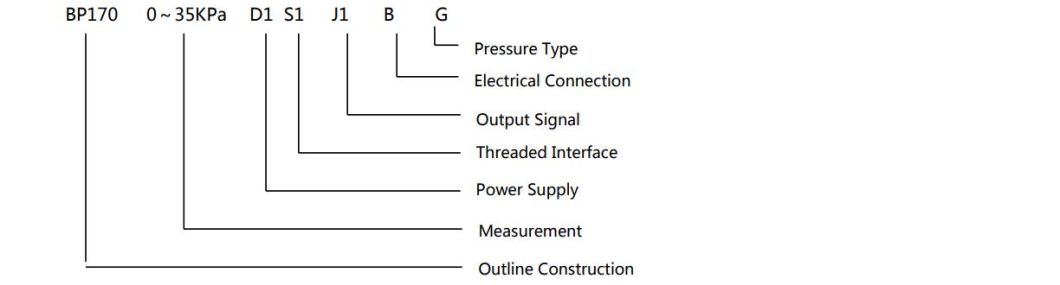

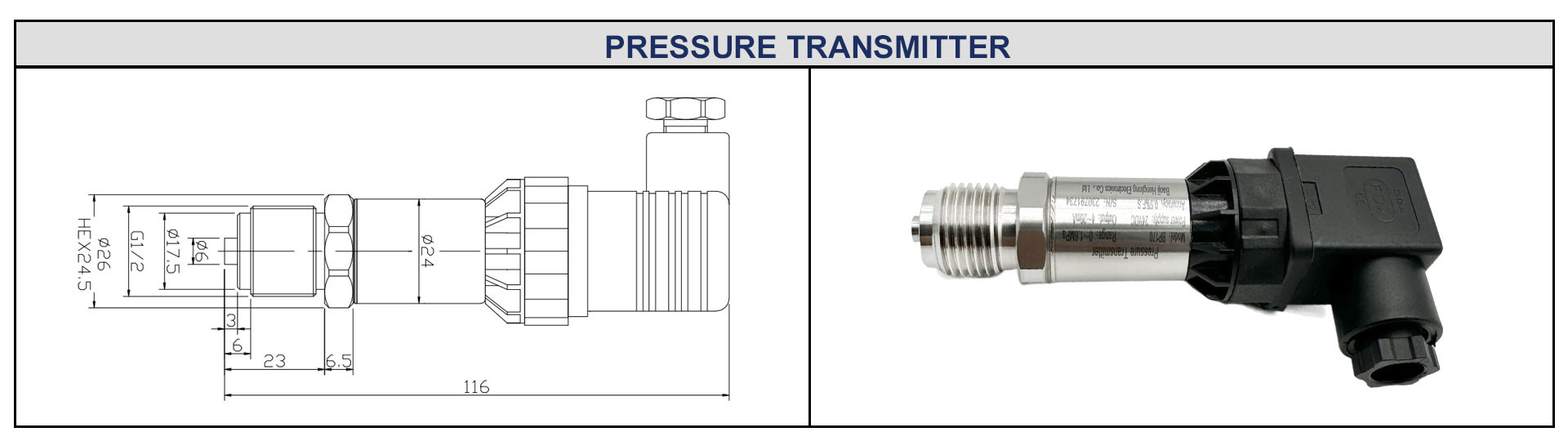

| Order Guide of Industrial pressure sensor transmitter |
| BP170X | Analog Pressure Transmitter |
| | Code | Outline Construction |
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector |
| | Measurement Range | 0kPa ~ 10kPa…5MPa |
(0-X)Kpa
or MPa | X: Indicates the Actual Measuring Range |
| | Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| | Code | Output Signal | |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| | Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |

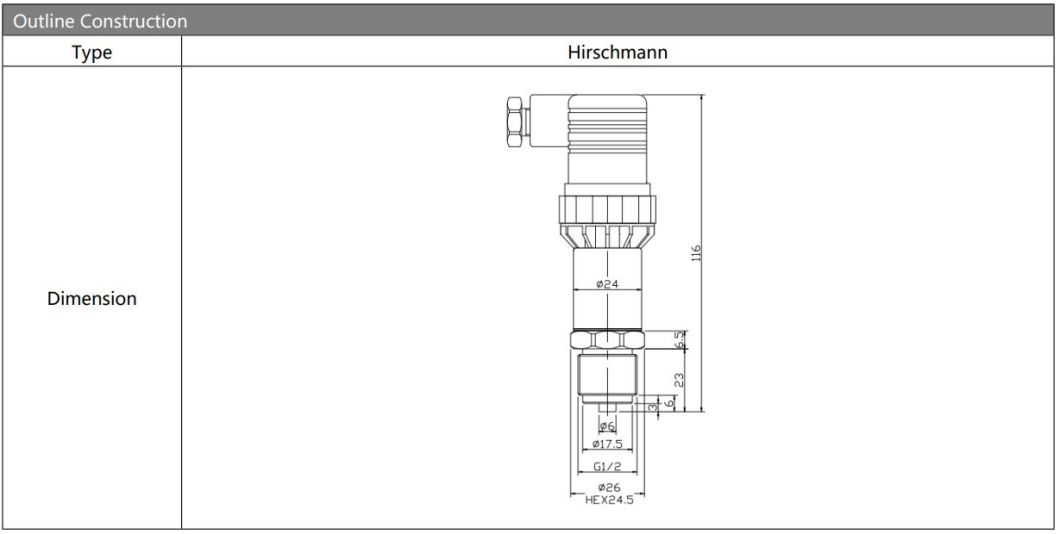

| J5 | Others(¢50.4 Flange) |

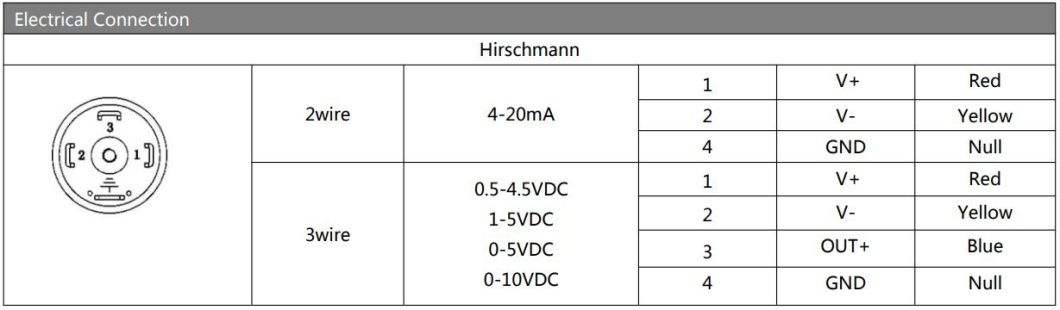

| | Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| | Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
